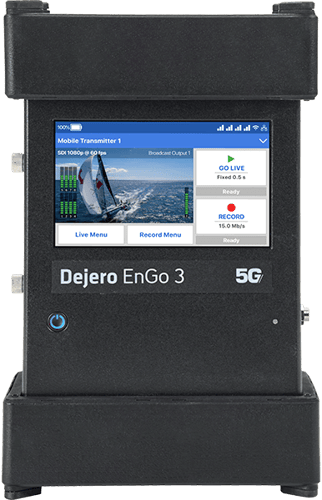

Dejero EnGo 3

KEY FUNCTIONS

Live

Transmit broadcast-quality live video over IP networks

Recording

Record video for later transfer

Live and Recording

Transmit live while also recording video for later transfer at a higher quality

Record and Auto Transfer

Video is transferred to a Dejero receiver while still recording

File Transfer

Transfer edited video or other files to a Dejero receiver

Wi-Fi Hotspot

Internet access over a single network connection, preserving remaining connections for video

GateWay Mode

Resilient, high-bandwidth internet access over aggregated network connections

ADVANCED FEATURES

Smart Blending Technology™
Hybrid Encoding Technology
Resilient Wireless Technology
0.5 s glass-to-glass latency over bonded cellular
GateWay mode for resilient mobile broadband
AES256 encryption
Trusted hardware authentication
Global dual-SIM modems
User-accessible SIMs
CellSat compatible
IFB / Intercom
Return video output
190 GB internal recording capacity (~ 70 hours of HD)
Up to 8 audio channels
Automatic video input and format detection
GPS Geolocation
Remote control and monitoring
Ergonomic backpack with wired remote
Optional Vehicle Antenna Dock

VIDEO

Formats

1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97

Encoding

H.264 AVC and H.265 HEVC
Adaptive bitrate

Bitrates

Live bitrate up to 20 Mb/s
Record and Auto Transfer bitrate up to 15 Mb/s

Inputs

12G/3G/HD/SD-SDI
HDMI
IP (MPEG-TS, RTMP, RTSP)

Output Options

SDI
SMPTE ST 2110
MPEG-TS
Content Delivery Networks (CDNs)
Social Networks
MultiPoint

AUDIO

Encoding

Live: Opus 48 kHz, 2-, 4-, 8-channel 16-128 kb/s adaptive bitrate, 16-bit audio depth
Recording: AAC 48 kHz, stereo or 4-channel

Inputs

Embedded (SDI, HDMI)

NETWORK CONNECTIONS

Cellular

4 x 3G/4G/5G

Ethernet

Dual 1 Gb/s port for LAN, WAN, and portable satellite (including BGAN, Ku-band, Ka-band)

Wi-Fi

Dual-band wireless with Wi-Fi 6 (802.11 a/b/g/n/ac/ax),
Open WEP, WPA-PSK, and WPA2-PSK

POWER

Internal Battery

Internal battery provides over 3 hours of run time

External Battery

Easily accessible Gold Mount or V-Mount plates in backpack or use included D-Tap cable

External DC

100-240 VAC adapter, 90W (included)

PHYSICAL

Dimensions (H x W x D)

25.1 x 15.6 x 9.8 cm (9.88 x 6.14 x 3.86 inches)

Weight

2.08 kg (4.6 lbs)

Operating Temperature

0° C to +45° C (32° F to 113° F) mounted
0° C to +40° C (32° F to 104° F) in backpack up to 95% RH (non-condensing)

Screen

5” capacitive touchscreen

Interfaces

1 x SDI in (BNC)
1 x HDMI in
1 x HDMI out
2 x RJ45 Ethernet
2 x USB 3.0
1 x IFB output (3.5mm)
1 x Intercom audio (3.5mm)
1 x DC in
1 x Wired remote

ACCESSORIES

All EnGo 3 devices come standard with a variety of accessories including:

Backpack with wired remote
External battery charging plate for V-Mount or Gold Mount batteries
D-Tap power connector cable
Audio cables for IFB (XLR and 3.5mm) and Intercom (3.5mm)
SDI and HDMI video cables

CERTIFICATIONS

Regulatory, industry, and mobile network operator certifications:

FCC Certification
CE Certification
IC Certification
PTCRB Certification
