Tech
Specs

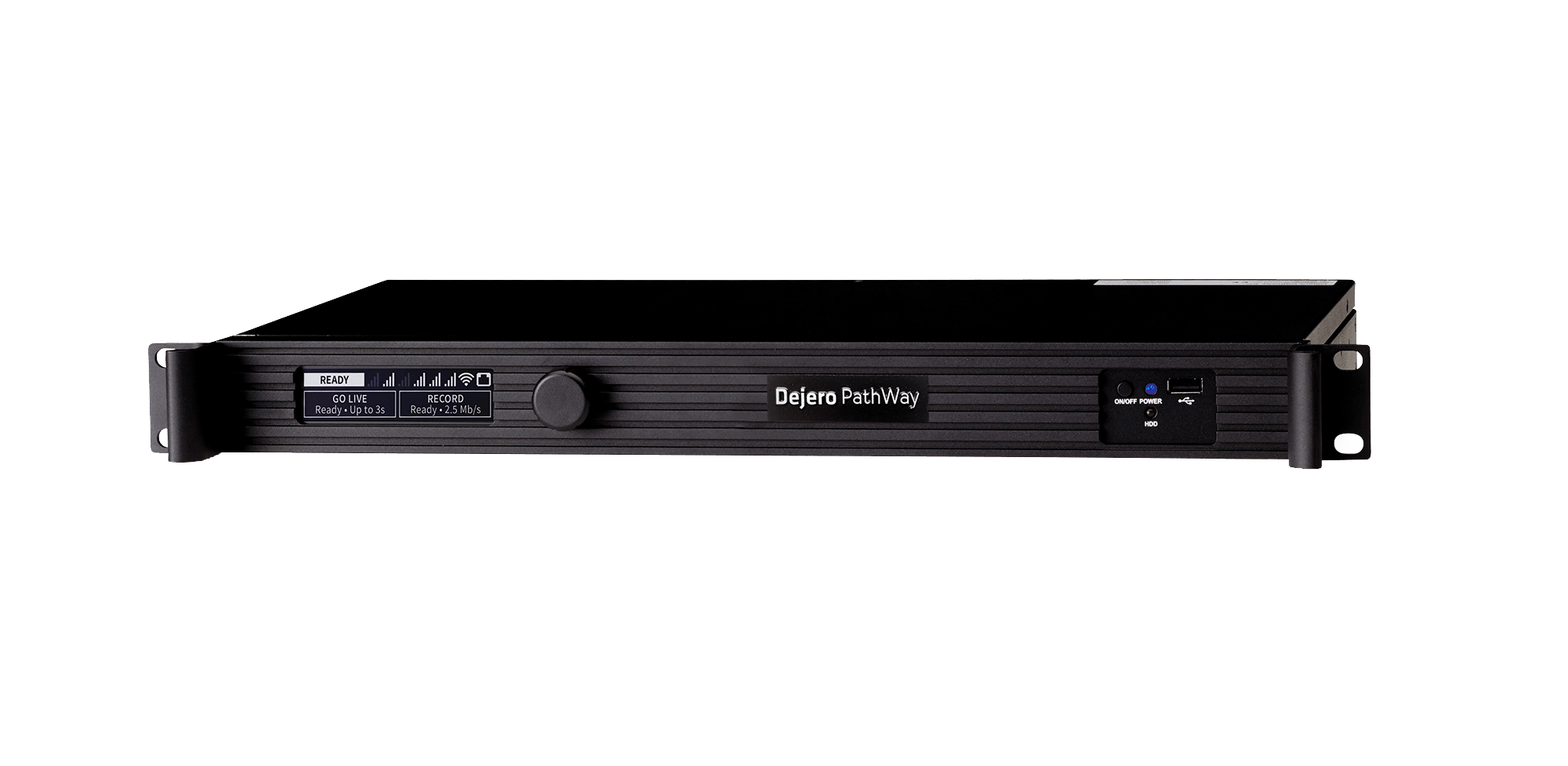

Dejero PathWay

PathWay E

PathWay EC

MODELS

Provides Ethernet (LAN/WAN and satellite) and Wi-Fi connectivity

Adds integrated modems for cellular connectivity

VIDEO

Input Formats

1080p 23.98/29.97/25/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97

Encoding

MPEG-4 (H.264 AVC and H.265 HEVC), adaptive bitrate

Inputs

HD/SD-SDI, HDMI (2.0a)

Recording

Up to 32 hours of HD (85 GB of storage)

Input Formats

1080p 23.98/29.97/25/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97

Encoding

MPEG-4 (H.264 AVC and H.265 HEVC), adaptive bitrate

Inputs

HD/SD-SDI, HDMI (2.0a)

Recording

Up to 32 hours of HD (85 GB of storage)

AUDIO

Encoding

Live: Opus 48 kHz, 2-, 4-, or 8-channel
Recording: AAC 48 kHz, stereo or 4-channel

Inputs

Embedded (SDI, HDMI)

Encoding

Live: Opus 48 kHz, 2-, 4-, or 8-channel
Recording: AAC 48 kHz, stereo or 4-channel

Inputs

Embedded (SDI, HDMI)

NETWORK CONNECTIONS

Cellular

Wi-Fi

Wi-Fi Dual-band wireless (802.11 a/b/g/n/ac) Open, WEP, WPA-PSK and WPA2-PSK

Ethernet

2 x 1 Gb/s port for LAN, WAN, and satellite (including BGAN, Ku-band, Ka-band)

Cellular

6 x 3G/4G/LTE

Wi-Fi

Wi-Fi Dual-band wireless (802.11 a/b/g/n/ac) Open, WEP, WPA-PSK and WPA2-PSK

Ethernet

2 x 1 Gb/s port for LAN, WAN, and satellite (including BGAN, Ku-band, Ka-band)

USER INTERFACE

Configuration and Monitoring

Front panel dial and OLED screen
Connected external display (DP or HDMI)
Web browser (Dejero Control)

Configuration and Monitoring

Front panel dial and OLED screen
Connected external display (DP or HDMI)
Web browser (Dejero Control)

POWER

Supply

100-240 VAC 50/60 Hz AC

Consumption

Max. 100 W

Supply

100-240 VAC 50/60 Hz AC

Consumption

Max. 100 W

PHYSICAL

Dimensions (H x W x D)

1U 19” rackmount 4.4 x 42.7 x 24.9 cm(1.7 x 16.8 x 24.9 inches)

Weight

4.2 kg (9.2 lbs)

Operationg Temperature

-10 °C to 45 °C (14 °F to 113 °F)

Interfaces

1 x SDI In (BNC), 1 x HDMI In, 2 x RJ45 Ethernet, 3.5 mm audio jack, DisplayPort out, HDMI out

Dimensions (H x W x D)

1U 19” rackmount 4.3 x 43.7 x 50.3 cm (1.7” H x 17.2” W x 19.8” D)

Weight

4.2 kg (9.2 lbs)

Operationg Temperature

-10 °C to 45 °C (14 °F to 113 °F) qualified operation 20-90% RH (non-condensing)

Interfaces

1 x SDI In (BNC), 1 x HDMI In, 2 x RJ45 Ethernet, 3.5 mm audio jack, DisplayPort out, HDMI out

CERTIFICATIONS

Rated for Vehicle Shock and Vibration (MIL810G)

Rated for Vehicle Shock and Vibration (MIL810G)
