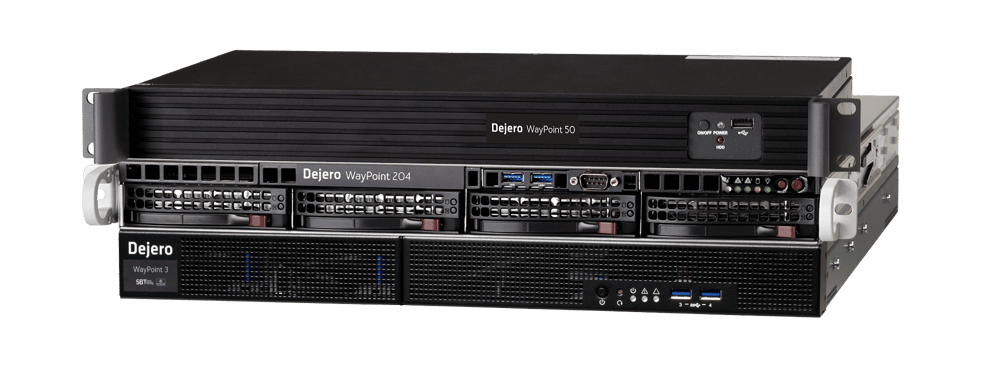

Dejero WayPoint Receivers

WayPoint 3

WayPoint 204

WayPoint 50

KEY FUNCTIONS

Reconstructs

Broadcast-quality video transported over multiple IP connections

Decodes

HEVC or AVC

Outputs

4 x 12G-SDI, MPEG-TS streams

Output Combinations

2 x 4K UHD + 2 x up to HD
1 x 4K UHD + 3 x up to HD
0 x 4K UHD + 4 x up to HD

Outputs

4 x SMPTE 2110 IP streams
(SMPTE ST-2022-7)

Outputs

1 x SDI or MPEG-TS stream

SMPTE ST 2110 OUTPUT

Video

Formats:
1080p 23.98/25/30/50/59.94/60
1080i 25/29.97/30

Audio

2-, 4-, or 8-channel for live transmission
Note: Transmitters sending recorded clips will send 2- or 4-channels of audio.

Video Network Connections

2 x 25 GbE SFP28

SDI OUTPUT

Video

12G-SDI

Formats:
4K UHD 2160p 23.98/24/25/29.97/30/50/59.94/60
1080p
23.98/25/29.97/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97

Audio

2-, 4-, or 8-channel for live transmission
Note: Transmitters sending recorded clips will send 2- or 4-channels of audio.

Video

3G-SDI

Formats:
1080p 23.98/25/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97

Audio

2-, 4-, or 8-channel for live transmission
Note: Transmitters sending recorded clips will send 2- or 4-channels of audio.

MPEG-TS OUTPUT

Video

Formats:
1080p 23.98/25/29.97/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97
Bitrate: Constant, up to 30 Mb/s
Codec: MPEG-4

Audio

2- or 4-channel
Bitrate: Constant, up to 320 Kb/s for each channel pair
Codec: AAC-LC

Transport

Protocols: UDP, RTP

Video

Formats:
1080p 23.98/25/30
1080i 25/29.97/30
720p 50/59.94/60
576i 25
480i 29.97
Bitrate: Constant, up to 30 Mb/s
Codec: MPEG-4

Audio

2- or 4-channel
Bitrate: Constant, up to 320 Kb/s for each channel pair
Codec: AAC-LC

Transport

Protocols: UDP, RTP

DATA NETWORK CONNECTIONS

Ethernet

2 x 1 Gb/s port for LAN/WAN

Ethernet

2 x 1 Gb/s port for LAN/WAN

Ethernet

2 x 1 Gb/s port for LAN/WAN

POWER

Supply

2 x 100-240 VAC 50/60 Hz AC

Consumption

Max. 300 W (redundant)

Supply

2 x 100-240 VAC 50/60 Hz AC

Consumption

Max. 400 W (redundant)

Supply

100-240 VAC 50/60 Hz AC

Consumption

Max. 100 W

PHYSICAL

Dimensions (H x W x D)

1U 19” rackmount
4.3 x 43.7 x 50.3 cm
(1.7” H x 17.2” W x 19.8” D)

Weight

9.5 kg (20.8 lbs)

Operating Temperature

5 °C to 45 °C (41 °F to 113 °F)

Storage

300+ hours of HD (6 Mb/s)

Interfaces

Genlock (BNC)
4 x 12G-SDI Out (BNC)
2 x USB 3.0
2 x RJ45 Ethernet
4 x IFB (1/4” TRS connectors)
2 x HDMI

Dimensions (H x W x D)

1U 19” rackmount
4.3 x 43.7 x 50.3 cm
(1.7” H x 17.2” W x 19.8” D)

Weight

9.5 kg (20.8 lbs)

Operating Temperature

10° C to 35° C (50° F to 95° F)

Storage

300+ hours of HD (6 Mb/s)

Interfaces

2 x SFP28 Ethernet
2 x RJ45 Ethernet
4 x IFB (1/4” TRS connectors)
VGA (DB9)

Dimensions (H x W x D)

1U short-depth 19” rackmount
4.4 x 42.7 x 24.9 cm
(1.7 x 16.8 x 9.8 inches)

Weight

4.2 kg (9.2 lbs)

Operating Temperature

-10° C to 45° C (14° F to 113° F)

Storage

35 hours of HD (6 Mb/s)

Interfaces

Genlock (BNC)
SDI out (BNC)
2 x RJ45 Ethernet
IFB (3.5 mm microphone connector)
1 x USB 2.0 (front)
4 x USB 3.0 (rear)

SUPPORTED SOURCES

EnGo 1.3, EnGo 260, EnGo 263/265, EnGo 3/3x
PathWay E/EC
Transceiver, FlexPoint 111
LivePlus Apps
NewsBook for Mac
MultiPoint

EnGo 1.x, EnGo 260, EnGo 263/265, EnGo 3/3x
PathWay E/EC
Transceiver, FlexPoint 111
LivePlus Apps
NewsBook for Mac
MultiPoint

EnGo 1.x, EnGo 260, EnGo 263/265, EnGo 3/3x
PathWay E/EC
Transceiver, FlexPoint 111
LivePlus Apps
NewsBook for Mac
MultiPoint

VIDEO

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

VIDEO

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

VIDEO

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

VIDEO

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

VIDEO

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3
